Channel scan doesn't find any channels with Unicable II LNB on VU+ Duo 4K SE box

S

SkyFan

New member
Joined
Dec 29, 2012
Messages
562
Reaction score
0
Points
0
I'm in Dumfries, Scotland. I have a VU+ Duo 4K SE box with 2 Twin Satellite DVB-S/S2/S2X FBC Tuner cards installed.

My Dish is pointed at 28.2 East. I connected my "LNB Unicable II - GT-Sat GT-S1DCSS24 SCR/dCSS Single Cable SCR24" to my dish and I connected the sat cable from the LNB (not the legacy port) to the top port of physical Tuner A as shown here:

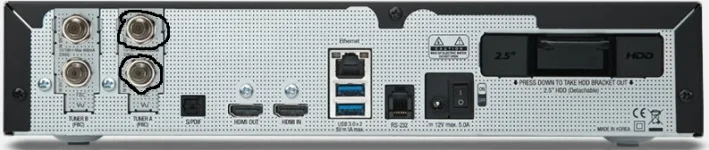

VU+ Duo 4K SE Back Tuner A Circled.webp

These are my settings:

Tuner A
======

Configuration mode: Advanced
Satellite: 28.2E
LNB: LNB 1
Priority: Auto
Type of LNB/Device: SCR (Unicable/Jess)
SCR (Unicable/JESS) type: LNB
Manufacturer: GT-Sat
Model: GT-S1dCSS24
Position: 1
Channel: User band 1 (0975)
Connected through another tuner: No
DiSEqC mode: None
Force legacy signal stats: No

Tuner B
======

Configuration mode: Advanced
Satellite: 28.2E
LNB: LNB 1
Priority: Auto
Type of LNB/Device: SCR(Unicable/Jess)
SCR (Unicable/JESS) type: LNB
Manufacturer: GT-Sat
Model: GT-S1dCSS24
Channel: User band 2 (1025)
Connected through another tuner: Yes
Connected to: Tuner A: Vuplus DVB-S NIM(4530BX FBC) DVB-S2X
DiSEqC mode: None
Force legacy signal stats: No

Tuner C-H are as Tuner B except they use User band 3 and onwards.

After I do an Automatic scan I get these results:
Tuner A: No channels found
Tuner B: Only 14 Channels found.

What am I doing wrong where it's not finding all the channels? Are my settings correct?

Are you sure you are scanning the whole satellite and not just a single transponder? Please post a screenshot of the scanning option you are using so we can double check.

I'm not sure what you mean. These are the only Automatic scan settings I see where it asks me yes or no for each item:

Automatic Scan.webp

Also, is it just Tuner A that I need to scan since there's only a physical cable connected to Tuner B?

Last edited:
The channel list is not specific to tuner. Once you scan one one tuner the channels are available for all tuners. You dont have to scan, but it is a good check to see if everything is okay.

There is discrepancy in your description. Please confirm whether the wire is in top socket (tuner A) or bottom socket (tuner B).

Ignore question about scanning. Those options are only available in manual scan. Sorry.

I said the wrong thing before, the Wire is connected to Tuner A in the top port.

Are my tuner settings correct? Any idea why an automatic scan isn't finding all the channels?

The tuner configuration appears correct. Please attach the file called "settings" in etc/enigma2 if you want it double checked. You will need to zip it before uploading it.

Have you checked that the f-plugs did not unscrew from the cable when you were swapping cables around? As you were planning to connect the other receiver too, did you fit any splitters? If so, what type are they?

There have been some posts by people who were shipped the LNB with Italian frequencies. Please double check with retailer you got the one with UK/standard frequencies.

File attached:
View attachment settings.zip

All F plugs in the LNB and receiver are connected properly. I'm not using any splitters yet.

How would I check if the LNB has UK/standard frequencies or Italian? I don't think I have the box the LNB came in anymore as the satellite installer threw it away.

Your config.nims in the settings file don't look right.

I have Tuner A connected to Unicable 28.2 and all the rest connected to A.
These are my settings:


Code:
config.Nims.0.advanced.lnb.1.bootuptime=0
config.Nims.0.advanced.lnb.1.lof=unicable
config.Nims.0.advanced.lnb.1.powerinserter=False
config.Nims.0.advanced.lnb.1.scrfrequency=975
config.Nims.0.advanced.lnb.1.scrList=1
config.Nims.0.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.0.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.0.advanced.sat.282.lnb=1
config.Nims.0.advanced.sats=282
config.Nims.0.configMode=advanced
config.Nims.0.diseqcA=282
config.Nims.0.diseqcB=3601
config.Nims.0.diseqcC=3601
config.Nims.0.diseqcD=3601
config.Nims.1.advanced.lnb.1.lof=unicable
config.Nims.1.advanced.lnb.1.powerinserter=False
config.Nims.1.advanced.lnb.1.scrfrequency=1025
config.Nims.1.advanced.lnb.1.scrList=2
config.Nims.1.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.1.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.1.advanced.sat.282.lnb=1
config.Nims.1.advanced.sats=282
config.Nims.1.advanced.unicableconnected=True
config.Nims.1.advanced.unicableconnectedTo=0
config.Nims.1.configMode=advanced
config.Nims.2.advanced.lnb.1.lof=unicable
config.Nims.2.advanced.lnb.1.powerinserter=False
config.Nims.2.advanced.lnb.1.scrfrequency=1075
config.Nims.2.advanced.lnb.1.scrList=3
config.Nims.2.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.2.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.2.advanced.sat.282.lnb=1
config.Nims.2.advanced.sats=282
config.Nims.2.advanced.unicableconnected=True
config.Nims.2.advanced.unicableconnectedTo=0
config.Nims.2.configMode=advanced
config.Nims.3.advanced.lnb.1.lof=unicable
config.Nims.3.advanced.lnb.1.powerinserter=False
config.Nims.3.advanced.lnb.1.scrfrequency=1125
config.Nims.3.advanced.lnb.1.scrList=4
config.Nims.3.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.3.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.3.advanced.sat.282.lnb=1
config.Nims.3.advanced.sats=282
config.Nims.3.advanced.unicableconnected=True
config.Nims.3.advanced.unicableconnectedTo=0
config.Nims.3.configMode=advanced
config.Nims.4.advanced.lnb.1.lof=unicable
config.Nims.4.advanced.lnb.1.powerinserter=False
config.Nims.4.advanced.lnb.1.scrfrequency=1175
config.Nims.4.advanced.lnb.1.scrList=5
config.Nims.4.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.4.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.4.advanced.sat.282.lnb=1
config.Nims.4.advanced.sats=282
config.Nims.4.advanced.unicableconnected=True
config.Nims.4.advanced.unicableconnectedTo=0
config.Nims.4.configMode=advanced
config.Nims.5.advanced.lnb.1.lof=unicable
config.Nims.5.advanced.lnb.1.powerinserter=False
config.Nims.5.advanced.lnb.1.scrfrequency=1225
config.Nims.5.advanced.lnb.1.scrList=6
config.Nims.5.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.5.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.5.advanced.sat.282.lnb=1
config.Nims.5.advanced.sats=282
config.Nims.5.advanced.unicableconnected=True
config.Nims.5.advanced.unicableconnectedTo=0
config.Nims.5.configMode=advanced
config.Nims.6.advanced.lnb.1.lof=unicable
config.Nims.6.advanced.lnb.1.powerinserter=False
config.Nims.6.advanced.lnb.1.scrfrequency=1275
config.Nims.6.advanced.lnb.1.scrList=7
config.Nims.6.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.6.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.6.advanced.sat.282.lnb=1
config.Nims.6.advanced.sats=282
config.Nims.6.advanced.unicableconnected=True
config.Nims.6.advanced.unicableconnectedTo=0
config.Nims.6.configMode=advanced
config.Nims.7.advanced.lnb.1.lof=unicable
config.Nims.7.advanced.lnb.1.powerinserter=False
config.Nims.7.advanced.lnb.1.scrfrequency=1325
config.Nims.7.advanced.lnb.1.scrList=8
config.Nims.7.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.7.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.7.advanced.sat.282.lnb=1
config.Nims.7.advanced.sats=282
config.Nims.7.advanced.unicableconnected=True
config.Nims.7.advanced.unicableconnectedTo=0
config.Nims.7.configMode=advanced

SkyFan said:
File attached:
View attachment 66307

All F plugs in the LNB and receiver are connected properly. I'm not using any splitters yet.

How would I check if the LNB has UK/standard frequencies or Italian? I don't think I have the box the LNB came in anymore as the satellite installer threw it away.
Click to expand...
I assume you are using OpenViX and not OpenATV as the unicable setup is different

so for Italian choose GT-S2dCSS24 - Italy - the models all use the same frequencies for the either Italian or other.

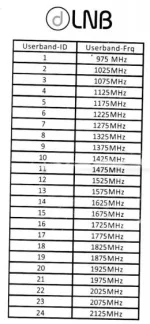

I am using currently the GT-S3DCSS24 which works well, but uses the Italian frequencies (it comes with a double sided sheet with either German or Italian values - as I live in Germany and ordered in Germany, you would expect German, but .....!)

Last edited:
Willo3092 said:
Your config.nims in the settings file don't look right.

I have Tuner A connected to Unicable 28.2 and all the rest connected to A.
These are my settings:

View attachment 66308
View attachment 66309
View attachment 66310
View attachment 66311

Code:
config.Nims.0.advanced.lnb.1.bootuptime=0
config.Nims.0.advanced.lnb.1.lof=unicable
config.Nims.0.advanced.lnb.1.powerinserter=False
config.Nims.0.advanced.lnb.1.scrfrequency=975
config.Nims.0.advanced.lnb.1.scrList=1
config.Nims.0.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.0.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.0.advanced.sat.282.lnb=1
config.Nims.0.advanced.sats=282
config.Nims.0.configMode=advanced
config.Nims.0.diseqcA=282
config.Nims.0.diseqcB=3601
config.Nims.0.diseqcC=3601
config.Nims.0.diseqcD=3601
config.Nims.1.advanced.lnb.1.lof=unicable
config.Nims.1.advanced.lnb.1.powerinserter=False
config.Nims.1.advanced.lnb.1.scrfrequency=1025
config.Nims.1.advanced.lnb.1.scrList=2
config.Nims.1.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.1.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.1.advanced.sat.282.lnb=1
config.Nims.1.advanced.sats=282
config.Nims.1.advanced.unicableconnected=True
config.Nims.1.advanced.unicableconnectedTo=0
config.Nims.1.configMode=advanced
config.Nims.2.advanced.lnb.1.lof=unicable
config.Nims.2.advanced.lnb.1.powerinserter=False
config.Nims.2.advanced.lnb.1.scrfrequency=1075
config.Nims.2.advanced.lnb.1.scrList=3
config.Nims.2.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.2.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.2.advanced.sat.282.lnb=1
config.Nims.2.advanced.sats=282
config.Nims.2.advanced.unicableconnected=True
config.Nims.2.advanced.unicableconnectedTo=0
config.Nims.2.configMode=advanced
config.Nims.3.advanced.lnb.1.lof=unicable
config.Nims.3.advanced.lnb.1.powerinserter=False
config.Nims.3.advanced.lnb.1.scrfrequency=1125
config.Nims.3.advanced.lnb.1.scrList=4
config.Nims.3.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.3.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.3.advanced.sat.282.lnb=1
config.Nims.3.advanced.sats=282
config.Nims.3.advanced.unicableconnected=True
config.Nims.3.advanced.unicableconnectedTo=0
config.Nims.3.configMode=advanced
config.Nims.4.advanced.lnb.1.lof=unicable
config.Nims.4.advanced.lnb.1.powerinserter=False
config.Nims.4.advanced.lnb.1.scrfrequency=1175
config.Nims.4.advanced.lnb.1.scrList=5
config.Nims.4.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.4.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.4.advanced.sat.282.lnb=1
config.Nims.4.advanced.sats=282
config.Nims.4.advanced.unicableconnected=True
config.Nims.4.advanced.unicableconnectedTo=0
config.Nims.4.configMode=advanced
config.Nims.5.advanced.lnb.1.lof=unicable
config.Nims.5.advanced.lnb.1.powerinserter=False
config.Nims.5.advanced.lnb.1.scrfrequency=1225
config.Nims.5.advanced.lnb.1.scrList=6
config.Nims.5.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.5.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.5.advanced.sat.282.lnb=1
config.Nims.5.advanced.sats=282
config.Nims.5.advanced.unicableconnected=True
config.Nims.5.advanced.unicableconnectedTo=0
config.Nims.5.configMode=advanced
config.Nims.6.advanced.lnb.1.lof=unicable
config.Nims.6.advanced.lnb.1.powerinserter=False
config.Nims.6.advanced.lnb.1.scrfrequency=1275
config.Nims.6.advanced.lnb.1.scrList=7
config.Nims.6.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.6.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.6.advanced.sat.282.lnb=1
config.Nims.6.advanced.sats=282
config.Nims.6.advanced.unicableconnected=True
config.Nims.6.advanced.unicableconnectedTo=0
config.Nims.6.configMode=advanced
config.Nims.7.advanced.lnb.1.lof=unicable
config.Nims.7.advanced.lnb.1.powerinserter=False
config.Nims.7.advanced.lnb.1.scrfrequency=1325
config.Nims.7.advanced.lnb.1.scrList=8
config.Nims.7.advanced.lnb.1.unicableManufacturer=GT-SAT
config.Nims.7.advanced.lnb.1.unicableProduct=GT-dLNB1-DY
config.Nims.7.advanced.sat.282.lnb=1
config.Nims.7.advanced.sats=282
config.Nims.7.advanced.unicableconnected=True
config.Nims.7.advanced.unicableconnectedTo=0
config.Nims.7.configMode=advanced
Click to expand...

That's the same settings that I used apart from changing the model and manufacturer. You mentioned my settings in my config.nims in the settings file don't look right. What settings do I need to change?

When you set your tuners up on the box it should write them to the settings file automatically when you press the green 'save' button.
I assume you are pressing save when you set up each tuner?

Willo3092 said:
When you set your tuners up on the box it should write them to the settings file automatically when you press the green 'save' button.
I assume you are pressing save when you set up each tuner?
Click to expand...

Yes I did.

Below is what I found from your settings file, they are not what you posted above. They are completely wrong. They are when you had 4 universal 28.2. Maybe you attached the wrong file or from teh wrong

Code:
config.Nims.0.diseqcA=282
config.Nims.1.configMode=equal
config.Nims.8.configMode=equal
config.Nims.9.configMode=equal

Anyway, please try willo's file although it would be better to remove these lines before transferring over

Code:
config.Nims.0.diseqcA=282
config.Nims.0.diseqcB=3601
config.Nims.0.diseqcC=3601
config.Nims.0.diseqcD=3601

abu baniaz said:
Below is what I found from your settings file, they are not what you posted above. They are completely wrong. They are when you had 4 universal 28.2. Maybe you attached the wrong file or from teh wrong

Code:
config.Nims.0.diseqcA=282
config.Nims.1.configMode=equal
config.Nims.8.configMode=equal
config.Nims.9.configMode=equal

Anyway, please try willo's file although it would be better to remove these lines before transferring over

Code:
config.Nims.0.diseqcA=282
config.Nims.0.diseqcB=3601
config.Nims.0.diseqcC=3601
config.Nims.0.diseqcD=3601
Click to expand...

I was wondering what they were myself :confused:
I haven't set the tuners up properly in a long time, I've just restored settings.

You must log in or register to reply here.

Similar threads

M
Unicable lnb on motorized dish
Replies
8
Views
769
mouadhada
M
S
[VU+ Ultimo4K] Can no longer get a Unicable II picture signal on my box after disconnecting and reconnecting box
2
Replies
24
Views
5K
abu baniaz
abu baniaz
D
Vu+ 4k SE: channels missing and crashes too
2
Replies
33
Views
8K
digitl
D
S
GT-Sat GT-S3DCSS24 SCR no signal
2
Replies
26
Views
11K
twol
twol
O
VU+ UNO Tuner Configuration Options. My LNB not listed.
Replies
2
Views
2K
Huevos
Huevos

OpenViX Feeds Status

Back
Top
